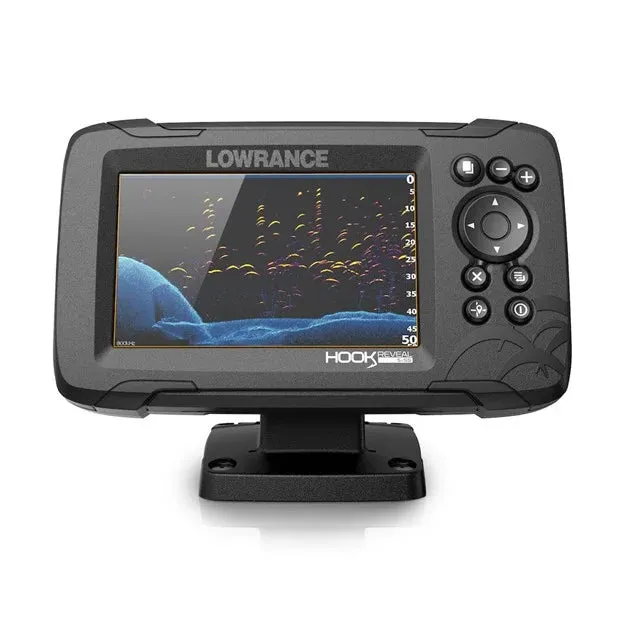

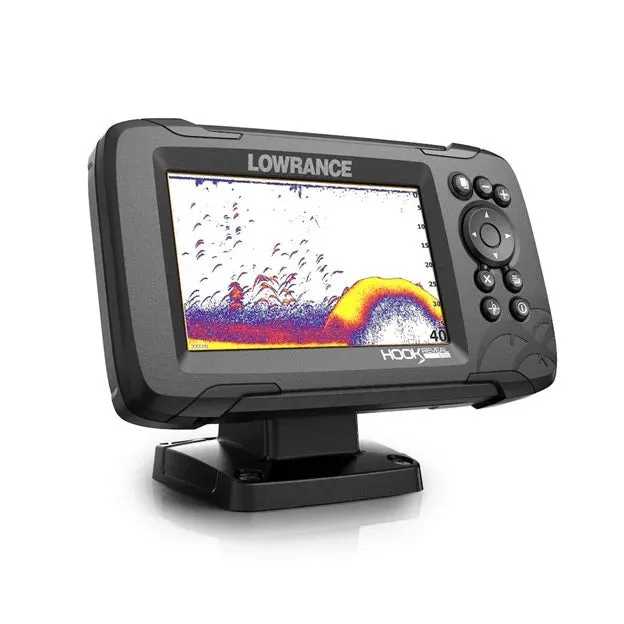

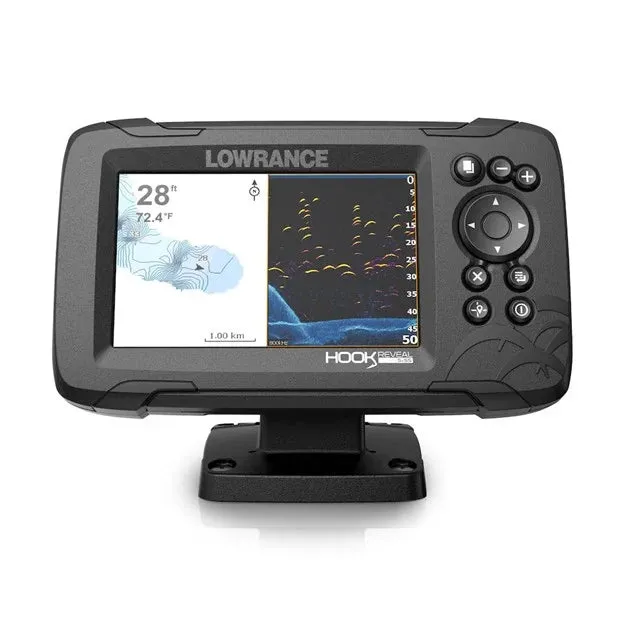

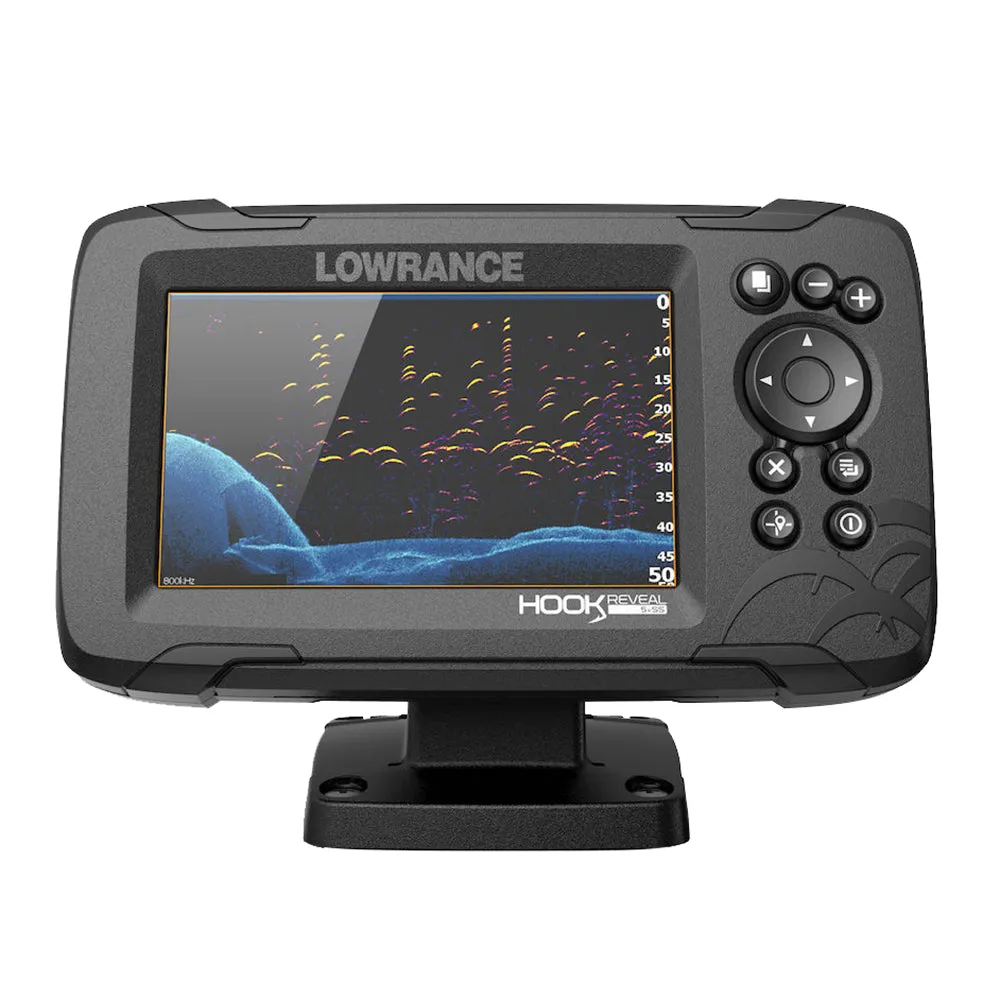

The HOOK Reveal offers powerful features to aid in your fishing endeavors, such as Autotuning Sonar, DownScan Imaging™ and the newly-introduced FishReveal™, which simplifies the detection of fish by combining CHIRP sonar and DownScan Imaging™. Further, the GPS Trackplotter facilitates route, trail and waypoint navigation.
Features:
- FishReveal™
- Autotuning sonar
- Double the sonar coverage of other fishfinders
- SplitShot transducer with High CHIRP and DownScan Imaging™
- GPS Trackplotter (No Charts)
- 5-inch SolarMAX™ Display
- New fish-finding color palettes
- Optimized keypad with one-touch access to key features
- Easy front-dash or gimbal-bracket mount
Specifications
- Display
- Backlight Color
- Pure White LED
- Display Resolution
- 800 x 480
- Screen Brightness
- >1000 NITS
- Viewing Angles
- 80° top/bottom, 85° left/right
- Connectivity
- SD Card Storage
- Micro SD Card(32 gb Max)
- Approvals
- Approvals Compliance
- FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
- Electrical
- Power Consumption max
- 0.9A @ 13VDC with backlight on full
- Power Consumption min
- 0.9A @ 13VDC with backlight on full
- Power Consumption typical
- 0.9A @ 13VDC with backlight on full
- Recommended Fuse Rating
- 5A
- Supply Voltage
- 12v DC (10.8-17VDC)
- Environment
- Humidity
- 60°C, 95% relative humidity (RH) for 18 hours
- Operating Temperature Range
- 5°F to 131°F (-15°C to 55°C )
- Shock Vibration
- 100,000 cycles of 20 G
- Storage Temperature Range
- 4°F to 140°F (-20°C to 60°C )
- Waterproofrating
- IPX7 with card door closed
- GPS
- Correction
- DGPS, WAAS
- Time to First Fix
- 30s
- MFD
- Cartography included
- GPS Plotter Only (No Charts)
- GPS
- 1 Hz GPSGLONASSWAASEGNOSMSAS
- Sonar Compatibility
- Integrated:CHIRPBroadbandDownScan
- Waypoints, Routes, Tracks
- 3000 Waypoints100 Routes100 Trails
- Physical
- Compass Safe
- 12" (300mm)
- Dimensions W x H x D
- 7.31" (185.7 mm) x 4.32" (109.8 mm) x 4.53" (115.0 mm)
- Mounting Type
- Gimbal BracketFront Dash Flush Mount
- Weight
- 0.90 lb. (0.41 kg)
- Other
- Interface
- Keypad:8-way directional keypadZoom /-ExitEnter/MenuWaypoint/CursorPower/LightPages
- Languages
- Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
- Warranty Period
- 1 Year 4 additional years of upgrade options totaling 5 years
